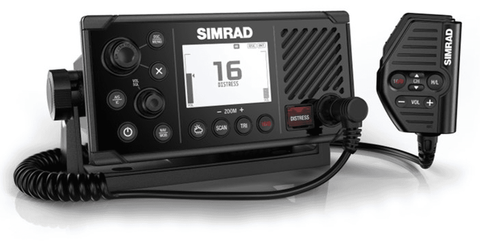

SIMRAD RS40 MARINE VHF RADIO

Part No:
000-14470-001
POA

Overview

Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS.
Keep track of nearby AIS-equipped vessels with an integrated AIS receiver, and add up to two optional wireless handsets to communicate clearly from anywhere on board.

Key Features
Class D DSC approved VHF radio
Dual channel AIS receiver
Integrated GPS receiver
Removable fist mic supports front or rear connection
Connect up to two wireless handsets
Add an optional loudhailer or external speaker
NMEA 0183® and NMEA 2000® connectivity
Integrated AIS and GPS Receivers
A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways. AIS information can be viewed on the RS40's built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display. An integrated GPS receiver ensures your boat's location can be sent with DSC distress calls, even if the rest of your on-board electronics are powered down.

Removable Fist Mic
The RS40's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the radio and mic to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Expandable with Wireless Handsets
Add an optional wireless handset to take your radio anywhere on board. The HS40 handset was designed as an intuitive portable companion to the RS40. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two wireless handsets can be connected to a single base station. With multiple handsets connected, the RS40 doubles as a handy on-board intercom.

RS40 Marine VHF Radio - Stay safe and connected with this VHF marine radio featuring removable fist mic, Class D DSC functionality, and built-in GPS. Keep track of nearby AIS-equipped vessels with an integrated AIS receiver, and add up to two optional wireless handsets.



Part Number: 000-14470-001



Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS.

Keep track of nearby AIS-equipped vessels with an integrated AIS receiver, and add up to two optional wireless handsets to communicate clearly from anywhere on board.

Key Features

  • Class D DSC approved VHF radio
  • Dual channel AIS receiver
  • Integrated GPS receiver
  • Removable fist mic supports front or rear connection
  • Connect up to two wireless handsets
  • Add an optional loudhailer or external speaker
  • NMEA 0183® and NMEA 2000® connectivity

Integrated AIS and GPS Receivers

A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways. AIS information can be viewed on the RS40's built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display. An integrated GPS receiver ensures your boat's location can be sent with DSC distress calls, even if the rest of your on-board electronics are powered down.

Removable Fist Mic

The RS40's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the radio and mic to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Expandable with Wireless Handsets

Add an optional wireless handset to take your radio anywhere on board. The HS40 handset was designed as an intuitive portable companion to the RS40. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two wireless handsets can be connected to a single base station. With multiple handsets connected, the RS40 doubles as a handy on-board intercom.

***Minimum product requirements***

Requires a VHF antenna (sold separately). An external GPS antenna may be required in some installations. All DSC functions require an MMSI number issued by local authorities; charges may apply

Enviromental

Temperature range -15 to +55°C (+5 to +131°F)
Waterproof IPX7

Power

Normal Working Voltage +13.6 V DC
Minimum operating Voltage ≤10 V DC
Low battery detect Voltage 10.5 ± 0.5 V DC
Over Voltage Protection >15.8 ± 0.5 V DC
Hailer Audio Power Out 30 W
Current Drain RX Max Audio Power ≤1.5 A
Current Drain Stand-By RX ≤0.45 A
Current Drain At 12V DC : Hi Power TX ≤6 A
Current Drain At 12V DC : Lo Power TX ≤1.5 A

General

Frequency Range: Transmit 156.025～157.425 MHz
Frequency Range: Receive 156.050～163.275 MHz
Channels INT / US / CAN / EU
Oscillate Mode PLL
Modulation FM(16KOG3E) DSC(16K0G2B)
Channel Spacing 25 KHz
Frequency Stability ±5 PPM
Digital Selectivity Calling (DSC) Class D
LCD Display FSTN 256x160 Pixels
AIS Max Targets 150

RECEIVER

Intermediate Frequency : 1st 38.85/21.7 MHz
Intermediate Frequency : 2nd 450 KHz
Sensitivity : 12dB SINAD ≤-6 dBuV(EMF)
Squelch Sensitivity: at tight ≤ 6 dBuV(EMF)
Spurious Response Rejection Ratio ≥70 dB
Adjacent Channel Selectivity ≥70 dB
Intermodulation Response ≥68 dB
S/N at 3KHz Dev. ≥40 dB
Audio Output Power At THD 10% ≥2.5 W
Audio Distortion ≤10 %
Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz
Current Drain Max Audio Power ≤1.5 A
Current Drain Stand-By ≤0.45 A
2ND RX Sensitivity For 12dB SINAD ≤ 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm ≤ 10-2

TRANSMITTER

Frequency error ≤±1.5KHz KHz
RF Power : Hi 23 ± 2 W
RF Power : Lo 0.8 ± 0.2 W
Maximum Deviation ≤± 5 KHz
S/N at 3KHz Dev. ≥40 dB
Modulation Distortion ±3KHz ≤10 %
Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz dB
Spurious/Harmonic Emissions: Hi/LO ≤0.25 uW
Modulation Sensitivity ≤15 mV
DSC TX deviation at 1.3K 2.6±0.26 KHz
DSC TX deviation at 2.1K 4.2±0.42 KHz
ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
