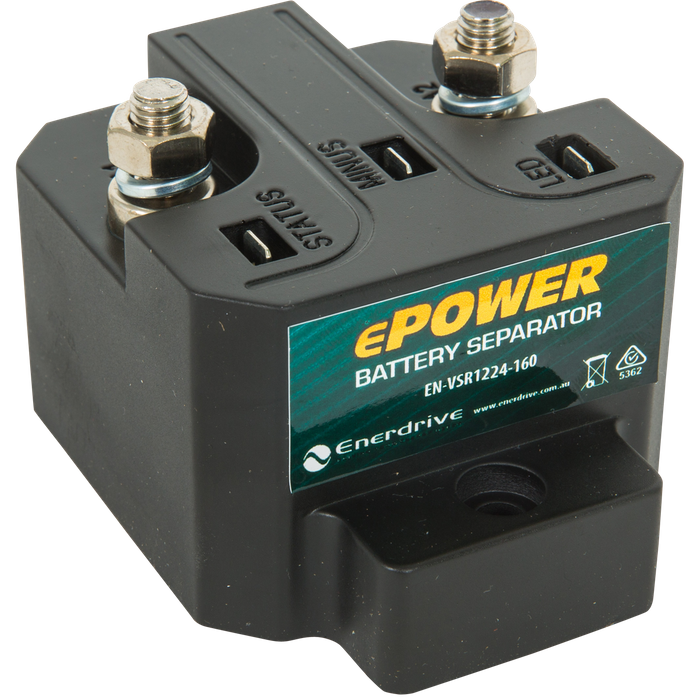

ENERDRIVE VSR 12V/24V 160A

Part No:
EN-VSR1224-160
POA

Overview

Features
When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Additionally, the ePOWER VSR range offers features like :
No voltage loss
Intelligent battery monitoring to prevent unwanted switching
Starter battery priority
Bipolar switching
Voltage dependent switching
Applications
Marine
Caravans
Camper vans
RV’s

Features

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Additionally, the ePOWER VSR range offers features like :

  • No voltage loss
  • Intelligent battery monitoring to prevent unwanted switching
  • Starter battery priority
  • Bipolar switching
  • Voltage dependent switching

Applications

  • Marine
  • Caravans
  • Camper vans
  • RV’s

Specifications

EN-VSR1224-160
Auto Voltage Detect 12 / 24V
Continuous Current (A) 160
Connect Voltage (V) 13.2 / 26.4
Disconnect Voltage (V) 12.8 / 25.6
Standby Current <3mA
Connection for remote on / off Yes
Micro switch for remote status indication LED
Weight (kg) 0.47
Dimensions L x W x H (mm) 108 x 72 x 58
