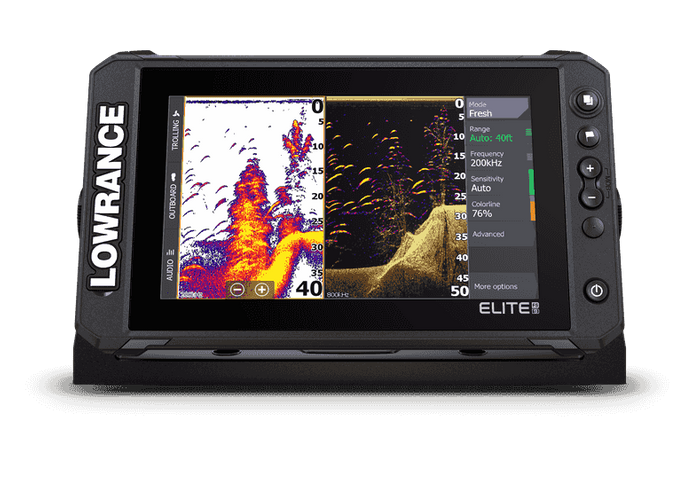

ELITE FS 9 DISPLAY ONLY
Overview
ELITE FS 9 with No Transducer (AUS/NZ) The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts – all at a more affordable price than other fishfinder/chartplotters in its category.
Key Features:
ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar.
Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays.
High Resolution Multi-touch screen.
Preloaded with C-MAP Contour + charts (AMER,APAC)
NMEA 2000®: Support and control NMEA 2000® devices.
Halo Radar: Drive Lowrance radar domes directly.
Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor.
Overview
The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
Key Features
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
Sonar
| Power Output | Max 1 kW RMS |
| Sonar Connections | One connector for Active Imaging SideScan, DownScan and CHIRP |
| Active Imaging 3-in-1 | DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
| CHIRP Sonar | High Range (160-240kHz)/200 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m |
| Available Sonar Frequencies | Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® |
Environmental
| Operating temperature range | -15°C to +55°C (5°F to 131°F) |
| Storage temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 and IPX7 |
Electrical
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended fuse rating | 3 A |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
Display
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50° top, 60° bottom, 70° left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
Physical
| Weight (display only) | 1.2 kg (2.7 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |
Interface/Connectivity
| NMEA 2000® | 1 port (Micro-C connector) |
| Data card reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth® | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
